Zhejiang Jingjing New Material Technology Co., Ltd. stands at the forefront of the global market as a premier DC Immunity Cores Manufacturer. Rooted in a foundation of innovation, integrity, and a relentless pursuit of excellence, Jingjing specializes in the research, development, production, and sales of advanced soft magnetic materials. Our focus on technological advancements and superior product quality ensures that we deliver unparalleled value to our customers worldwide.

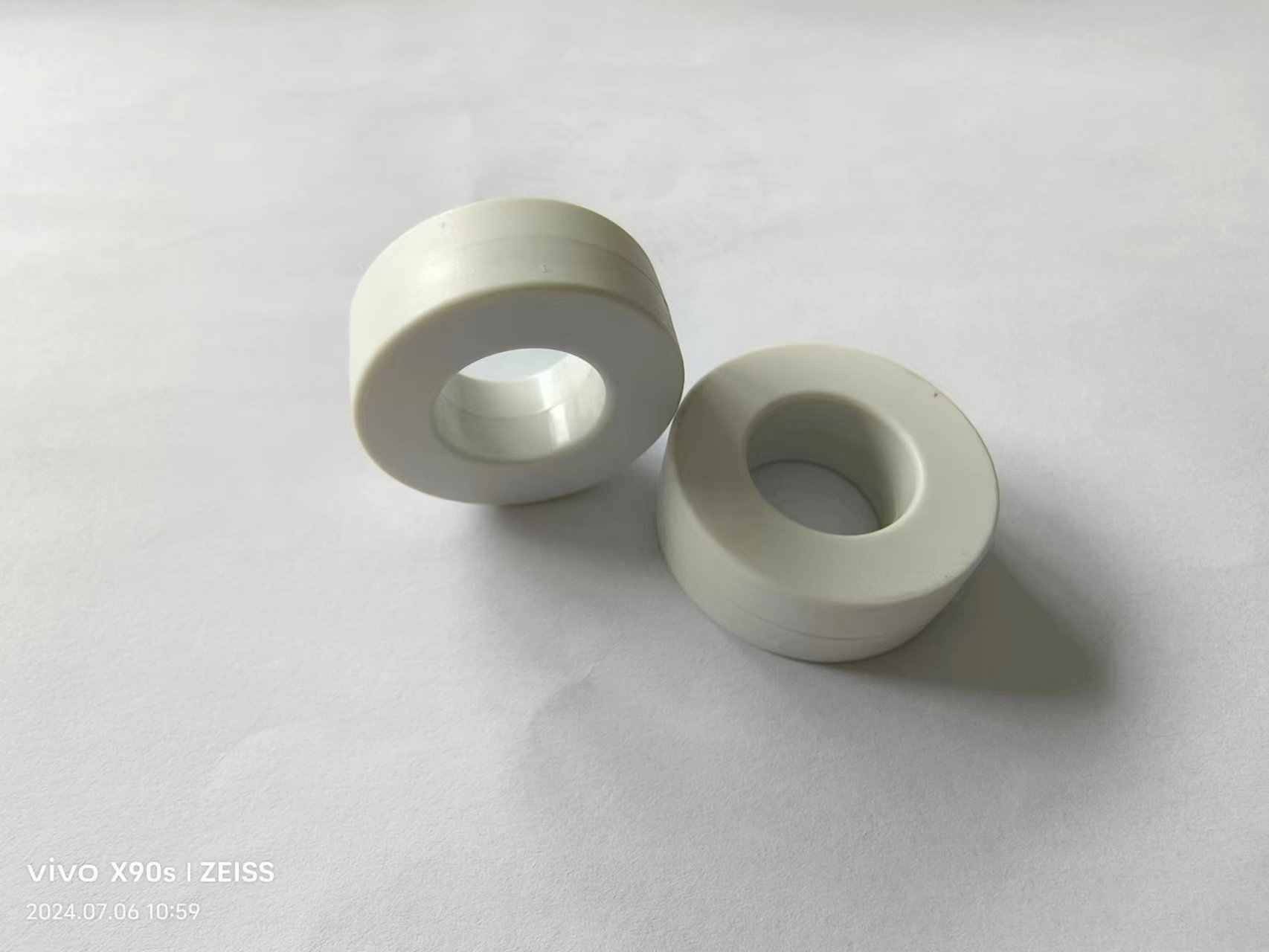

One of our flagship offerings is the innovative DC Immunity Composite Cores, which combine amorphous and nanocrystalline cores to provide unmatched DC current immunity. These cores are designed for a wide current range from 1.5 to 200A, boasting robust temperature stability and competitive pricing without compromising on quality. Additionally, our DC Immunity Single Cores offer exceptional performance characteristics, featuring high saturation magnetic sensitivity, strong anti-saturation properties, and high magnetic permeability.

Our products are integral in various applications, from high-frequency transformers for medical equipment and new energy inverters to precision measurement transformers and anti-electromagnetic interference filters in intelligent remote meters. Backed by a team of professional engineers with extensive experience and led by distinguished experts from Hangzhou University of Electronic Science and Technology, Jingjing is committed to providing comprehensive technical support and service to meet the diverse needs of our clients.

By exporting our cutting-edge DC Immunity Cores to the global market, we aim to foster mutual benefit and drive common development, ensuring that our partners receive cost-effective, high-quality products.

DC immunity cores

What Is DC Immunity Cores

DC immunity cores, also known as DC magnetic cores, are integral components in electrical devices and transformers that operate with direct current (DC). Unlike traditional cores utilized in alternating current (AC) transformers, these cores are specifically designed to function efficiently with a constant current direction. Their construction typically involves the use of ferromagnetic materials such as highly magnetic steel or ferrite. These materials enable a smooth and stable flow of the magnetic field, even under the influence of a direct current, thereby optimizing performance.

● Characteristics of DC Immunity Cores



One of the fundamental advantages of DC immunity cores is their ability to minimize hysteresis. Hysteresis is a phenomenon where a magnetic material loses some of its magnetic induction when the direction of the current changes. This attribute is crucial when dealing with DC currents, as a consistent and precise magnetic field is essential for effective energy transfer. DC cores address this challenge by maintaining their magnetic properties over time, ensuring that energy conversion processes remain efficient.

DC immunity cores exhibit several performance characteristics that make them suitable for specific applications. For instance, they possess strong resistance to DC, high linearity, and high precision. These properties are vital for applications requiring accurate measurement and control of electrical parameters. Moreover, DC cores perform reliably over a wide range of temperatures, making them versatile for various environmental conditions.

● Applications of DC Immunity Cores



The unique properties of DC immunity cores make them indispensable in a variety of applications, notably in battery systems and electric vehicles (EVs). In these settings, the need for an optimized magnetic response is imperative to achieve the highest efficiency. DC immunity cores are also essential in smart meters, energy meters, and other devices that rely on direct current for their operation. The cores enhance the performance of these devices by providing accurate and stable measurements, thus ensuring effective energy management.

DC immunity cores are often integrated into current transformers that are designed to be immune to DC. These transformers are crucial in modern power systems, where they facilitate accurate measurement and control of electrical parameters. The use of single core or composite core structures in these transformers further enhances their performance. Single core structures consist of materials with constant permeability, while composite cores utilize a combination of high magnetic and constant magnetic materials. Both structures exhibit superior DC resistance, high precision, and excellent temperature characteristics, making them suitable for a wide range of applications.

● Advantages of DC Immunity Cores in Power Systems



In the context of power systems, DC immunity cores offer several benefits. They provide high precision in current measurement, which is essential for efficient energy distribution and management. The cores' resistance to DC ensures that they can accurately measure current without being affected by the presence of direct current components. This capability is particularly important in applications such as electric meters, energy meters, and smart meters, where precise measurements are necessary for billing and energy management.

Additionally, DC immunity cores contribute to the reliability and stability of power systems. By minimizing hysteresis and maintaining their magnetic properties over time, these cores ensure that transformers and other devices operate efficiently. This reliability is crucial for the performance of power systems, especially in critical applications where consistent energy supply is necessary.

In conclusion, DC immunity cores are vital components in modern electrical devices and power systems. Their ability to minimize hysteresis, maintain precise magnetic properties, and perform reliably over a wide range of temperatures makes them indispensable in applications requiring direct current. By enhancing the performance of transformers and other devices, DC immunity cores play a crucial role in ensuring efficient energy transfer and reliable operation in various settings.

FAQ about DC Immunity Cores

What is DC current current transformer?

A DC current transformer plays a crucial role in accurately measuring and monitoring direct current (DC) within electrical systems. Its fundamental purpose is to convert a high current on its primary side into a lower, proportional current on its secondary side, facilitating purposes like measurement, protection, or control. The working principle of a DC current transformer mirrors some aspects of its alternating current (AC) counterpart, but distinct differences arise due to the unidirectional flow characteristic of DC current. This article delves into the key operating principles and design considerations of a DC current transformer.

● Conductor Location and Magnetic Field Generation



The operation starts with the conductor's placement. The conductor carrying the DC current is passed through the primary side of the current transformer, which typically involves a coil around the current conductor. In some designs, a magnetic core might be employed to enhance the transformer's performance. As DC current flows through the primary winding, it generates a stable magnetic field around the conductor. Unlike alternating current, which constantly changes direction, direct current flows in a single direction, resulting in a steady and consistent magnetic field.

● Induction and Current Transformation



The stable magnetic field created by the DC current induces a voltage in the secondary winding of the transformer. This secondary winding usually contains more turns than the primary winding, which ensures a lower current on the secondary side. The voltage induced in the secondary winding is directly proportional to the current flowing through the primary side, adhering to Faraday’s law of electromagnetic induction. By carefully selecting the number of turns in the secondary winding and other key design parameters, the transformer can be calibrated to maintain a specific ratio between the primary and secondary currents. This ensures that the output current on the secondary side can be effectively used for accurate measurement and control.

● Output Current and Standardization



The current on the secondary side serves as the output signal, which can be utilized for various purposes including measurement, protection, or control. Typically, the output current from a current transformer is standardized to ensure compatibility with a wide range of devices and equipment. For instance, a common standard output is 5 amps, which allows for seamless integration with measurement instruments and protection systems.

● Design Considerations and Core Selection



A critical aspect of DC current transformers is their design, particularly when dealing with high DC currents. The selection of the magnetic core material is paramount. Utilizing DC Immunity Composite Cores is often necessary to prevent core saturation and maintain accuracy. Composite cores can effectively handle the magnetic stability required for high DC currents without succumbing to saturation, which is a common challenge in DC current measurement. This careful core selection ensures the longevity and reliability of the transformer, especially in demanding applications.

● Importance of Specific Design for DC Applications



It is imperative to note that DC current transformers are specifically engineered for DC current and are not interchangeable with AC current transformers due to intrinsic differences in magnetic behavior and core design. The unidirectional nature of DC current requires distinct design considerations to ensure accurate current measurement and effective functionality. Employing DC Immunity Composite Cores is just one example of the specialized components required to address the unique demands posed by DC current.

In conclusion, the DC current transformer operates on principles of electromagnetic induction and magnetic field stability to convert a high primary current into a manageable secondary current. The meticulous design and core selection, particularly the use of DC Immunity Composite Cores, are essential to maintaining accuracy and preventing core saturation. This design specificity ensures that the DC current transformer remains an indispensable tool for measurement, protection, and control within various electrical systems.

What are the two types of current transformers?

Current transformers (CTs) are indispensable components in modern electrical systems, playing a pivotal role in measuring and monitoring current flow. These transformers are specially designed to step down high current levels to a safer, manageable level for metering and protective relaying. In this context, two primary types of current transformers stand out: Wound CTs and Bar-type CTs. Understanding the distinctions and applications of these types is crucial for selecting the appropriate transformer for specific electrical environments.

Wound Current Transformers



Wound current transformers are characterized by their construction, which includes both a primary winding and a secondary winding that are wound around a magnetic core. This design allows Wound CTs to measure high currents with remarkable accuracy. These transformers are commonly used in power systems where precise current measurement is essential, such as in metering and protection applications.

● Construction and Design



The primary winding in Wound CTs is integrated into the electrical circuit carrying the high current, while the secondary winding is connected to the measuring instruments. The magnetic core efficiently transfers the current from the primary to the secondary winding, ensuring that the measurements are accurate and reliable.

● Applications



Due to their high accuracy, Wound CTs are extensively used in applications requiring precise measurements, including energy metering in large buildings or industrial facilities. They are also critical in protective relaying, where accurate current measurement is necessary to detect faults and trigger protective mechanisms. Furthermore, Wound CTs are often used in control applications, such as monitoring and regulating the output of power generators and large motors.

Bar-type Current Transformers



Bar-type current transformers differ from Wound CTs in their construction, featuring a solid core with a secondary winding wrapped around it. These transformers are typically utilized for measuring lower currents, commonly found in electronic circuits.

● Construction and Design



In Bar-type CTs, the primary conductor itself acts as a single-turn primary winding. The secondary winding, wrapped around the solid core, senses the magnetic field created by the primary current. This simple yet effective design provides the necessary insulation and isolation between the high-current primary circuit and the measuring tools.

● Applications



Bar-type CTs are well-suited for metering lower current levels, such as those found in electronic circuits and smaller electrical installations. They are commonly used in monitoring applications to ensure the quality and stability of power systems. Additionally, Bar-type CTs are employed in control applications within electronic devices where lower current measurement is required.

Other Considerations



Both Wound and Bar-type CTs can be further classified based on additional factors such as accuracy, frequency response, and insulation level. For example, high-accuracy CTs are chosen for precise metering and protection, while low-accuracy CTs may be suitable for less critical applications. The frequency response is pivotal in applications needing wide-band current measurements, and insulation levels are crucial for high-voltage systems requiring enhanced electrical isolation.

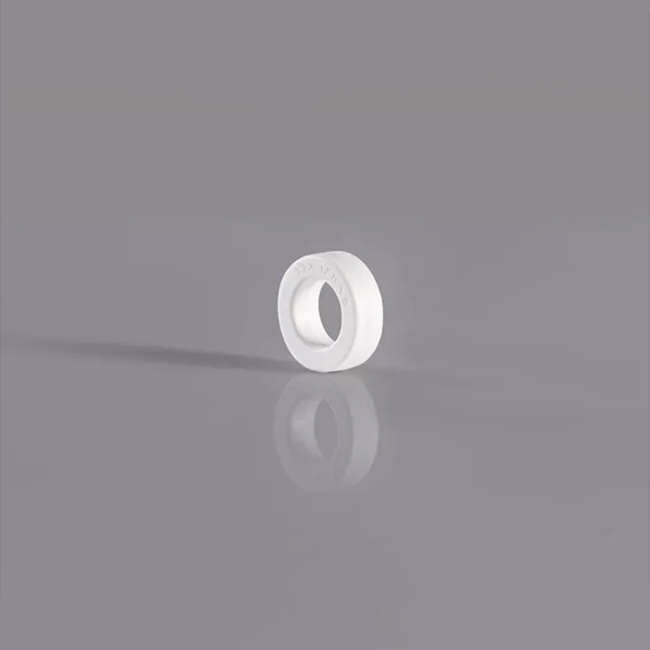

● DC Immunity Single Cores



An important aspect to consider in current transformer selection is DC immunity, particularly for single-core CTs. DC immunity ensures that the transformer can accurately measure AC currents in the presence of DC components, which can otherwise saturate the core and distort the measurements. This feature is critical in modern power systems where both AC and DC components may coexist.

In conclusion, the appropriate selection between Wound and Bar-type current transformers largely depends on the specific requirements of the electrical system, including the current levels to be measured, the need for accuracy, and the presence of DC components. By understanding the unique characteristics and applications of each type, engineers and professionals can make informed decisions that enhance the reliability and efficiency of their electrical installations.

What is the difference between AC and DC current transformers?

Understanding the distinction between AC and DC current transformers is crucial for anyone involved in electrical engineering or related fields. Both types of transformers serve essential functions but operate under different principles and applications. This article delves into their differences, focusing on their operational mechanics, applications, and the innovative DC Immunity Single Cores.

● Operational Mechanics



○ AC Current Transformers



Alternating Current (AC) transformers work based on the principle of electromagnetic induction. In AC systems, the current periodically changes direction, causing the magnetic field to fluctuate. An AC current transformer uses this fluctuating magnetic field to induce a voltage in its secondary winding, which is then used for measurement or further processing. These transformers are typically found in household and industrial power systems, where they step down high voltages for safer, more manageable levels suitable for various applications.

○ DC Current Transformers



Direct Current (DC) transformers, on the other hand, deal with a unidirectional flow of electricity. Unlike AC, the current in a DC system does not change direction, requiring a different method for transformation. DC transformers often incorporate rectifiers to convert AC input into DC, or use technologies like Hall Effect sensors to measure current. These transformers are essential in applications involving batteries, solar panels, and certain electronic devices that require a stable, constant voltage.

● Applications



○ AC Applications



AC current transformers are ubiquitous in residential, commercial, and industrial settings. They are primarily used to step down high-voltage power from transmission lines to lower-voltage levels suitable for operating household appliances, industrial machinery, and office equipment. Due to their ability to handle large power loads efficiently, AC transformers are a cornerstone of modern electrical power distribution networks.

○ DC  Applications



DC current transformers find their niche in specialized applications where stable and consistent power is critical. They are indispensable in renewable energy systems like solar panels and wind turbines, where they convert and stabilize the generated electricity for storage or consumption. These transformers are also integral in battery-operated devices and electric vehicles, ensuring a constant power supply for optimal performance.

● The Role of DC Immunity Single Cores



In both AC and DC transformer applications, the introduction of DC Immunity Single Cores has improved performance and reliability. These advanced cores are designed to handle the challenges posed by DC components in AC systems, which can cause saturation and inaccurate measurements in traditional transformers. DC Immunity Single Cores mitigate these issues by maintaining accurate performance even in the presence of a DC offset. This innovation is particularly beneficial in mixed-current environments like modern power grids and renewable energy systems, where both AC and DC currents are present.

● Conclusion



In summary, while both AC and DC current transformers are essential for various electrical applications, they operate under fundamentally different principles and serve distinct purposes. AC transformers leverage the alternating nature of current to induce voltage changes, making them ideal for widespread power distribution. In contrast, DC transformers ensure a constant flow of electricity for specialized applications, utilizing technologies like rectifiers and Hall Effect sensors. The advent of DC Immunity Single Cores further enhances the functionality of these transformers, ensuring accurate performance in complex, mixed-current environments. Understanding these differences and innovations is vital for making informed decisions in electrical engineering and power management.
