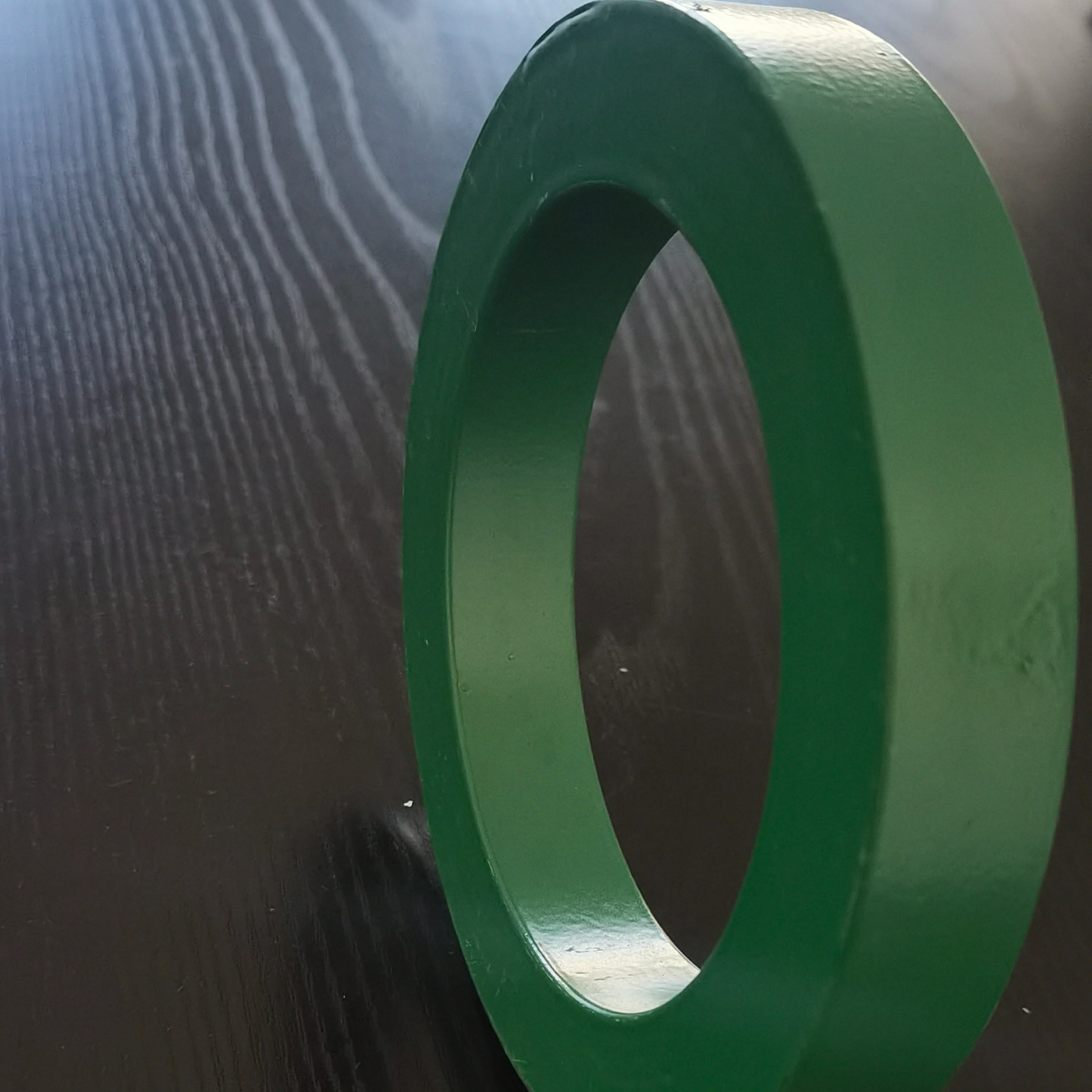

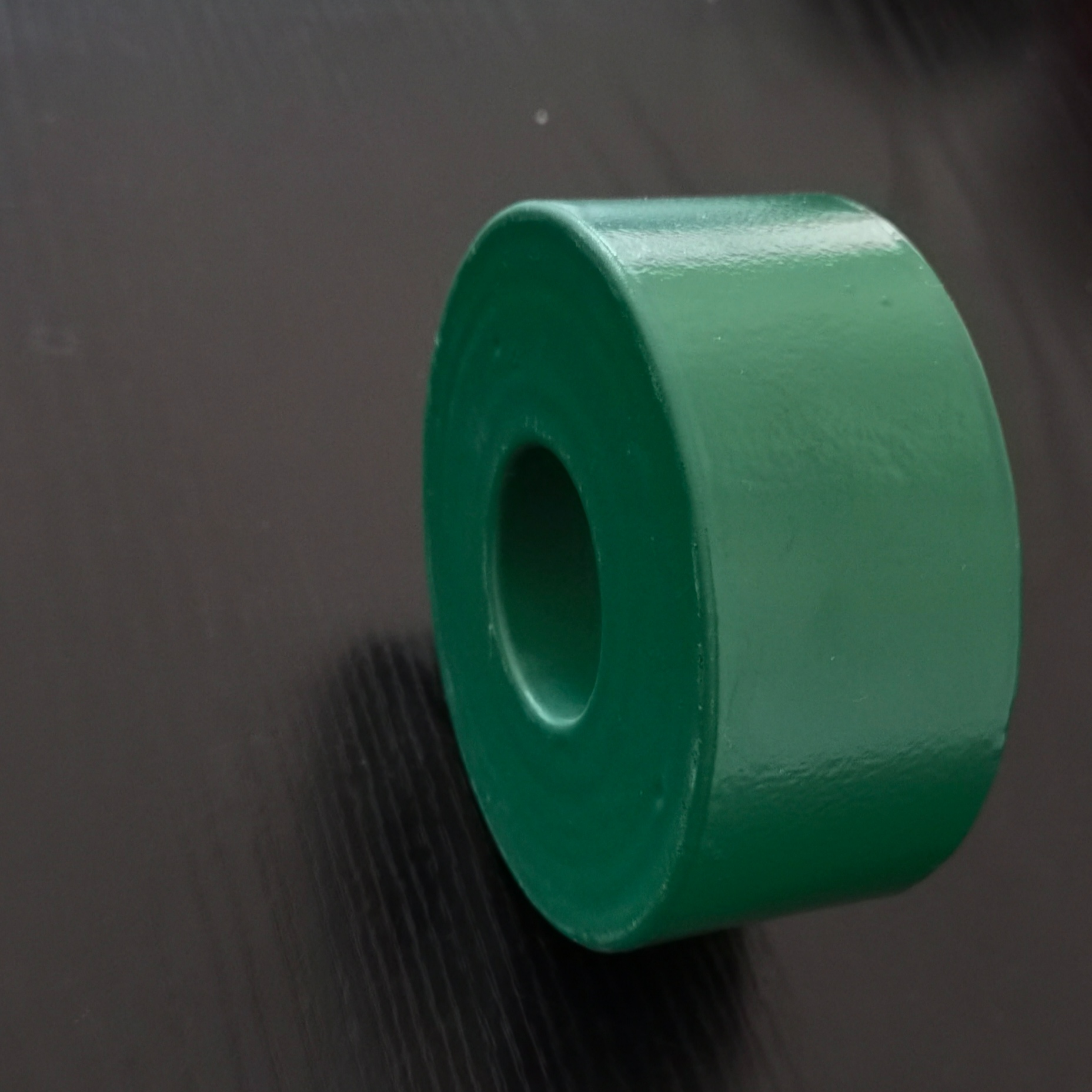

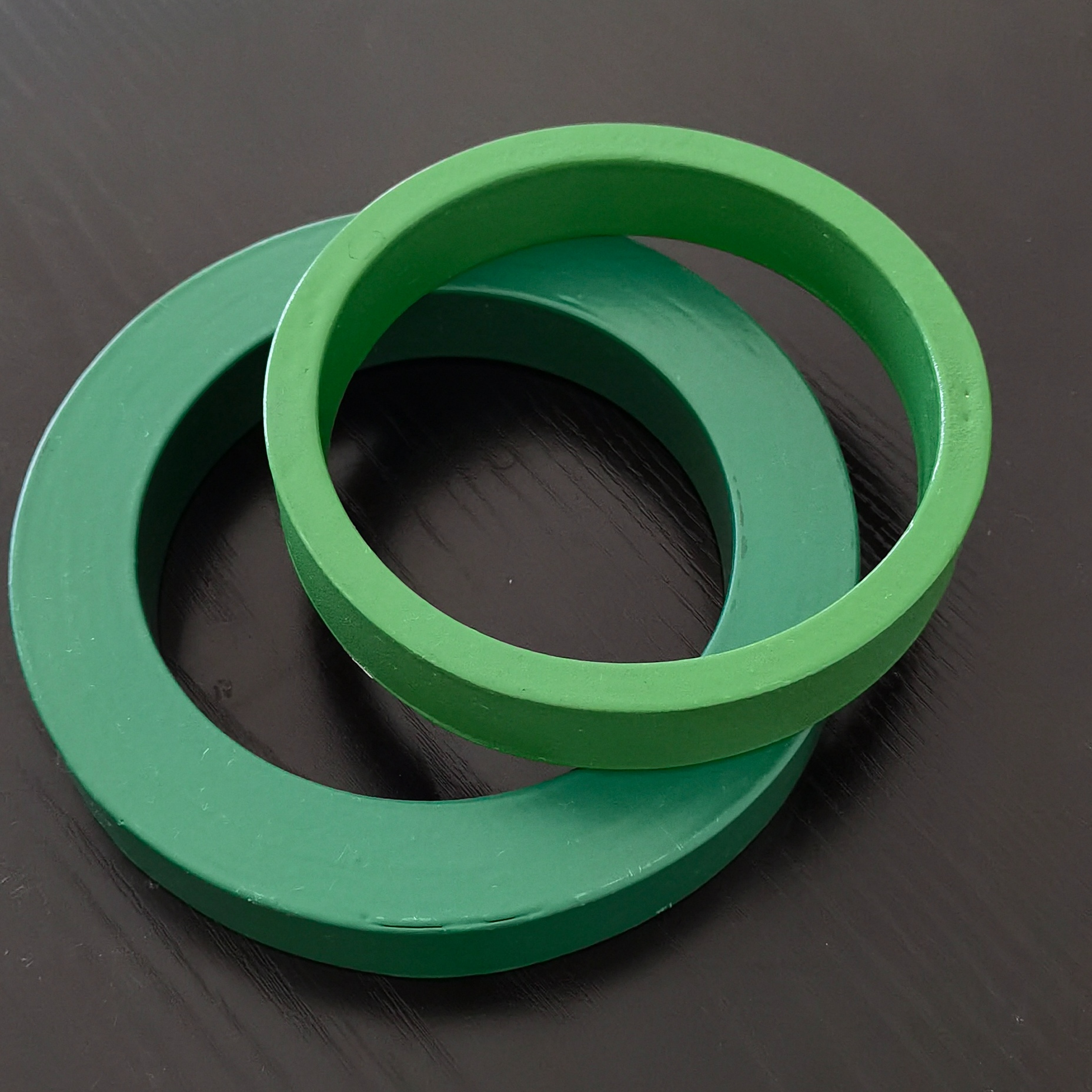

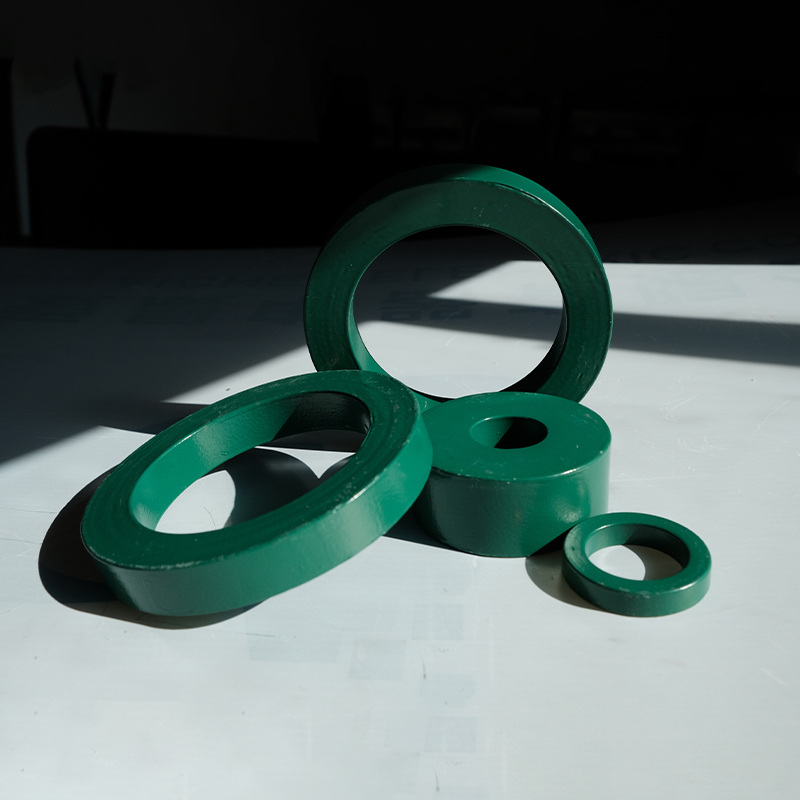

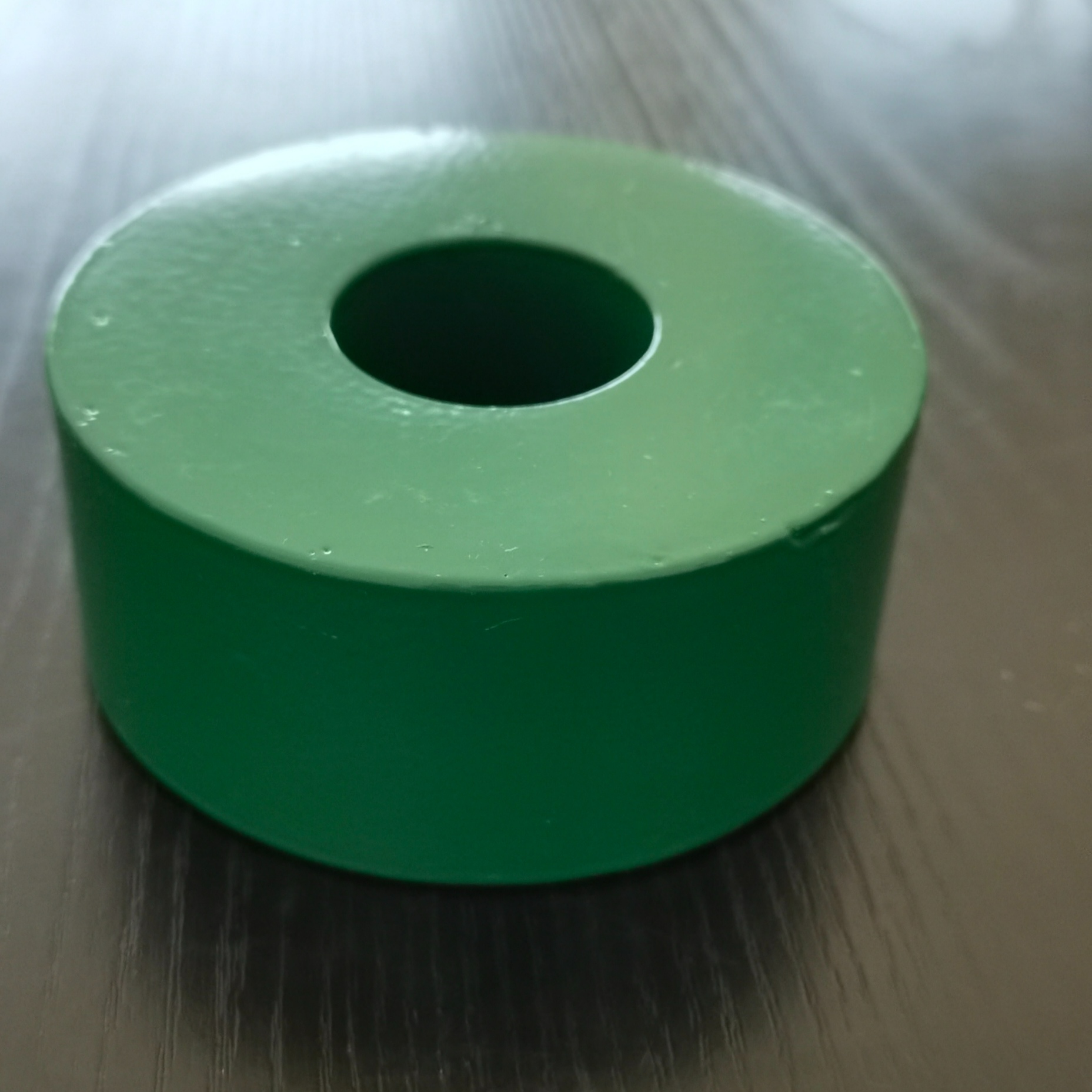

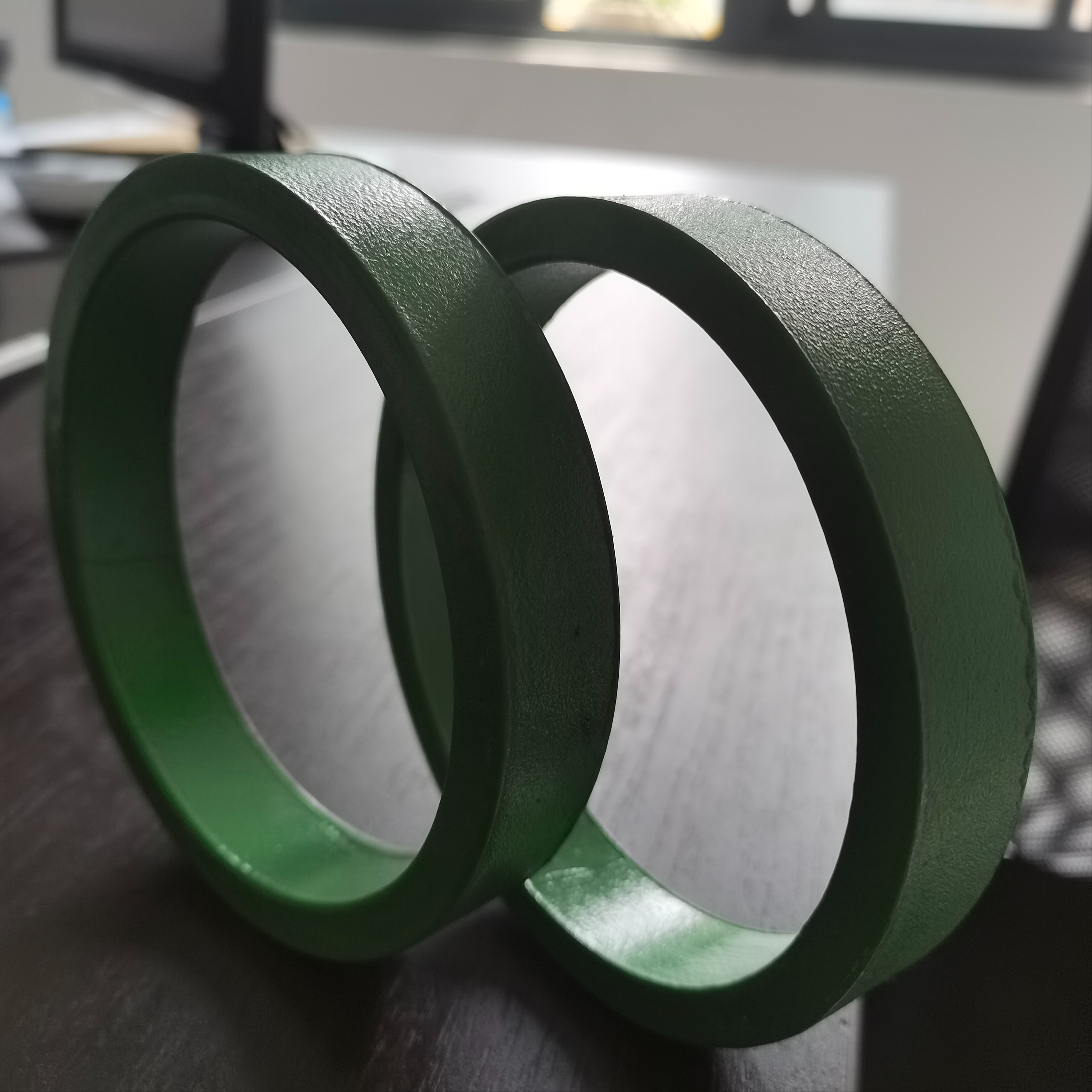

Spray painted nanocrystalline core

Short Description:

Common Mode Core reduce the common mode noise that is problematic in differential transmission. We can offer EMC Nanocrystalline Core solution for replacing the ferrite. Our EMC Core are very much advantageous in EMC filters for applications with a high amount of asymmetric interference current compared to the established Ferrite materials. Common mode chokes are utilized as a part of request to channel basic mode electromagnetic impedance (EMI) streams without de-rating under high ebbs and flows and without causing signal corruption.



Product Detail

Product Tags

Characteristics

●High initial permeability has bigger insertion loss compared to ferrite and the inhibiting effect is far larger to weak interference than ferrite;
●higher inductance can be obtained with smaller size magnetic core and less coils;
●High saturation magnetic induction intensity (Bs = 1.2 T), strong anti-saturation W;
●Fine frequency and resistance value are higher than with ferrite;
●High Curie temperature, good temperature stability;
●Outstanding unbalanced current resistance;
●Low eddy-current loss, low temperature rise.

Our Common mode choke core are based on nanocrystalline softmagnetic material nanocrystalline which provide a unique combination of high permeability and low losses at high frequencies. This is why they are suitable for many applications, such as



Common Mode Filter Chokes

Absorber Cores for suppression of Motor bearing currents

High precision Energy Meters

Current Sensors

HF Current transformers

Appications

Solar inverters Switched-mode power supplies

Frequency Converter

EMC filters

Welding equipment

Wind generators

Automotive applications

Inductive cooking

Uninterrupted Power Supply(UPS)

● Current sensing modules
● Adjustable speed drives
● Variable-frequency drives
● Wind power converter
● Power supply

Basic Parameters

ItemPerformance
Material CompositionFeCuNbSiB
Thicknessum28~35
Saturation induction Bs (T)1.25
Curie temperature(oC)570oC
Hardness Hv880
Crystalline temperature Tc(oC)500oC
Saturation magnetostriction2×10-6
Initial permeability μi≥80000
Maximum permeability um≥500000
Densityg/cm³ 7.2
electrical resistivity(μΩ.cm)130
Lamination factor≥0.8
Operating Temperature Range-50~120℃

Specification

Part No.Core dimensionFinished dimentionNote
ODIDHTODIDHT
JJ8001805050854555
JJ7501756020805525
JJ8002806025855530
JJ8003806030855535
JJ1000110080301057535
JJ1200112080201257525
JJ1150111585251208030
JJ1200212085301258035
JJ1150211590251208530
JJ1200312090201258525
JJ1350113590251408530
JJ1300113095201359025
JJ130213095251359030
JJ14001140100201459525
JJ170011701202517511530
JJ195011951554020015045

Note: The iron core is circular, rectangular, runway type, etc., which can be made according to customer specifications. Protective box material for PBT, PA66, DMC, cast aluminum, stainless steel, resin coating.

Data Sheet of magnetization Curve of nanocrystalline transformer core (B-H curve)

H(mA/cm)B(Gs)μ(×104  H(mA/cm)B(Gs)μ(×104  H(mA/cm)B(Gs)μ(×104
0.395010.20.7710010.331.3920011.45
1.8530012.92.2740014.022.6250015.19
2.8760016.643.1670017.633.3880018.83
3.6190019.843.81100020.894.01110021.83
4.38130023.624.75150025.135.06170026.74
5.35190026.265.57210030.005.86230031.23
6.11250032.566.34270033.896.57290035.13
6.82310036.177.05330037.257.28350038.26
7.56370038.757.85400040.558.22430041.63
8.64460042.379.04490043.139.41520043.97
9.84550044.4810.29580044.8510.74610045.20
11.06630045.3311.43650045.2511.97680045.21
12.51710045.1612.85720044.5913.31740044.24
13.79760043.8614.36780043.2214.98800042.50
15.66820041.6716.43840040.6817.20860039.79
18.31880038.2519.47900036.7820.15910035.94
20.98920034.9021.80930033.9522.74940032.89
23.68950031.9324.73960030.8925.95970029.75
27.43980028.4329.00990027.1730.701000025.92
