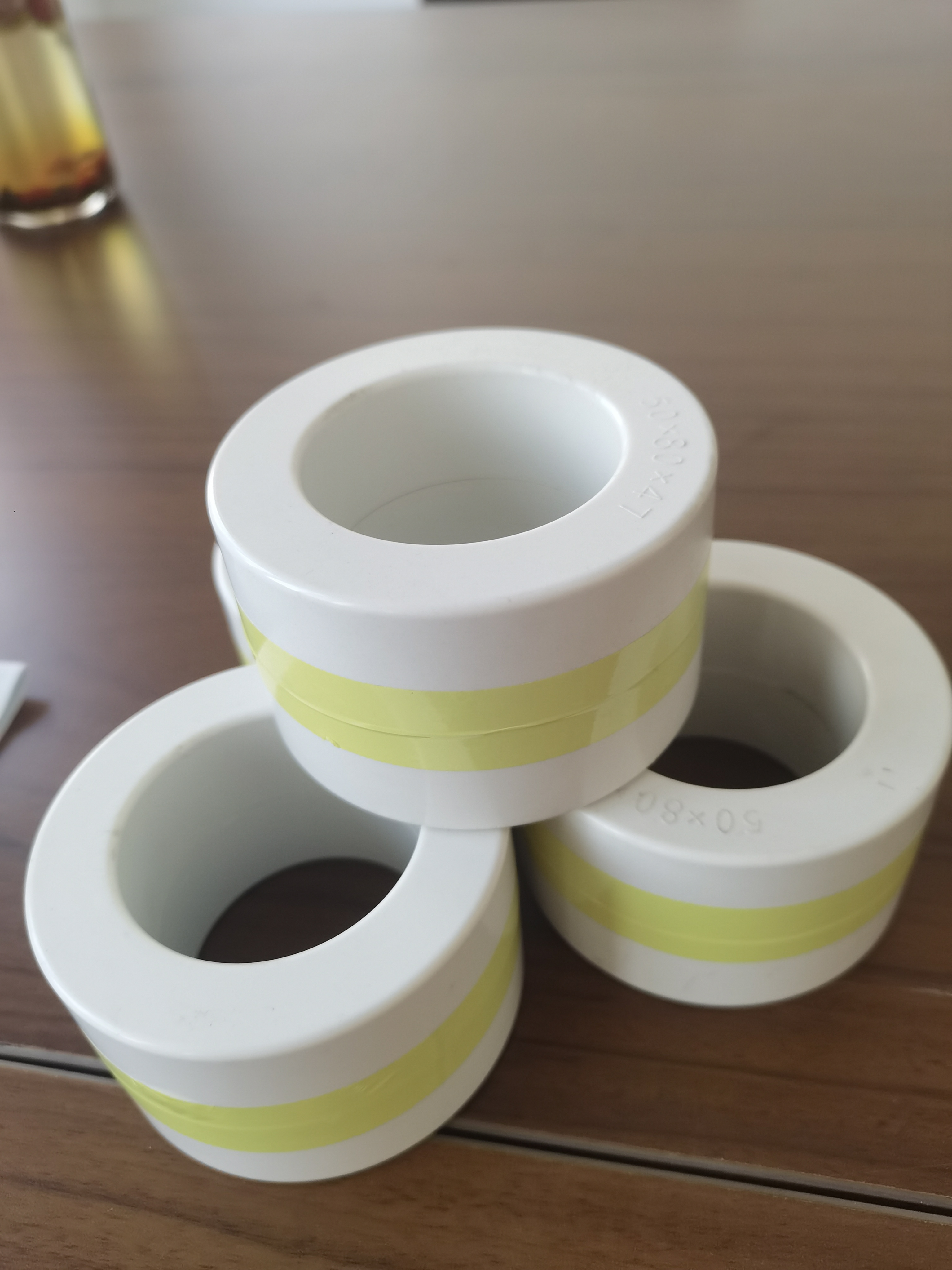

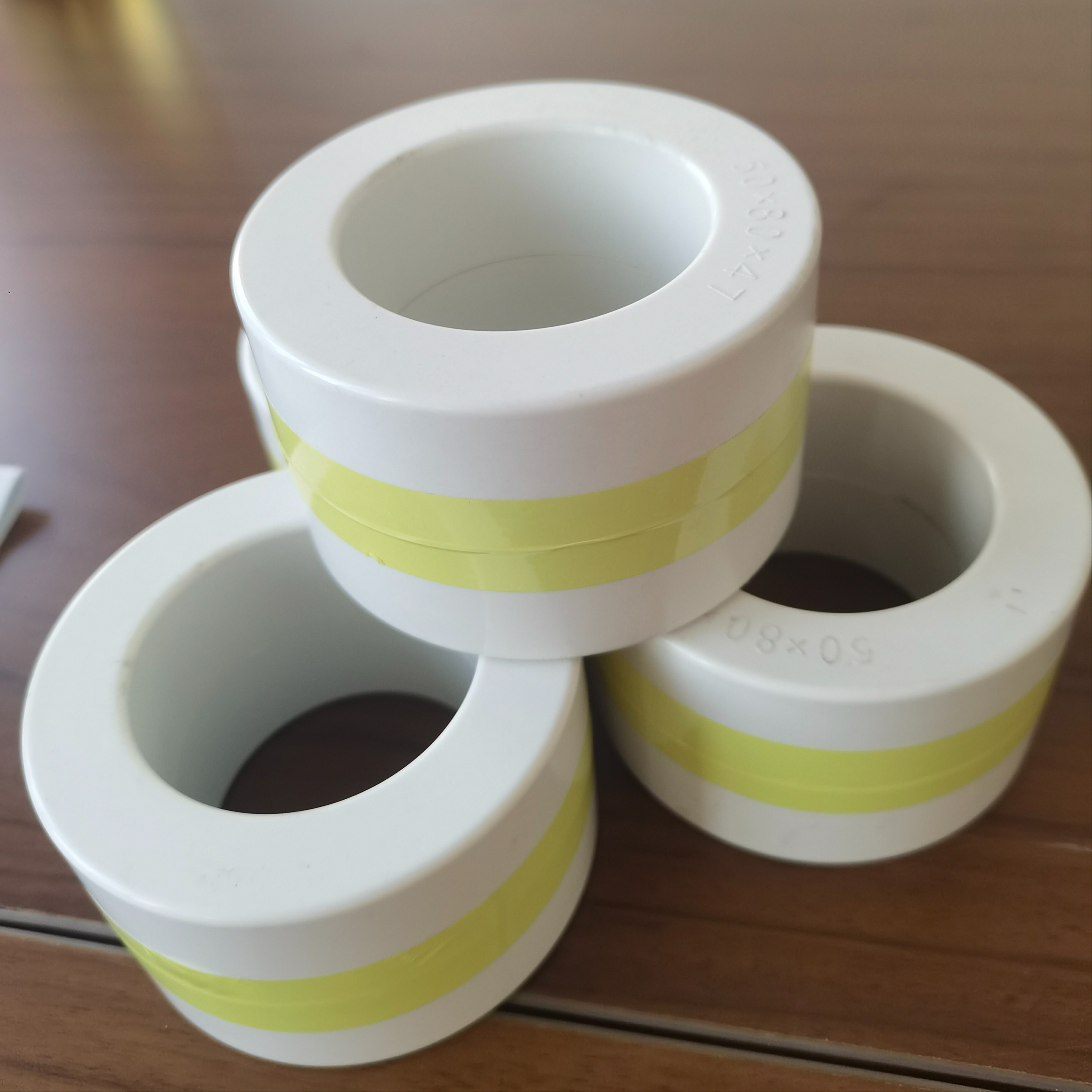

nanocrystalline core

Short Description:

The better the permeability of nanocrystalline core, the smaller the measurement error and the higher the precision. Low ampere turns and small variable ratio are required. Nanocrystalline alloy transformer core is widely used in precision current transformers, zero-sequence current transformers, PFC, medium-high frequency transformers and other electrical equipment due to its excellent magnetic properties such as high permeability and high saturation magnetic inductance

Applications

Inverter Welding machine power supply

X-ray, laser, communication power supply

UPS and high frequency induction heating power supply

Frequency control of motor speed power supply

Charging power supply

UPS



Performance

High Bs – Reducing volume and weight of the cores

High permeability and low Coercive force –Higher efficiency and less excited power of transformer

Low Br (Br≤0.2T) – Higher magnetic flux density and output power

Low core loss – Lower temperature rising,higher efficiency of the transformer

Keep stable working at -45℃ ~ 130 ℃ for long time.

Parameters :

Item

Performance

Material Composition

FeCuNbSiB

Thickness(um)

28~35

Saturation induction Bs (T)

1.25

Curie temperature(oC)

570oC

Hardness Hv

880

Crystalline temperature Tc(oC)

 500oC

Saturation magnetostriction

 2×10-6

Initial permeability μi

≥80000

Maximum permeability um

≥500000

Densityg/cm³

 7.2

electrical resistivity(μΩ.cm)

 130

Lamination factor

 ≥0.8

Operating Temperature Range -50~120℃

Specifications

Code No

Core size(mm)

Case size(mm)

AC(cm2)

Le(cm)

Weight(g)

Suitable Power

OD

ID

HT

OD

ID

HT

Ac

Lm

W

kW

JJ-5020

50

32

20

54

28

24

1.35

12.87

125

1-1.5

JJ-6420

64

40

20

66

37

23

1.72

16.30

215

1-2

JJ-7020

70

40

20

75

36

25

2.03

17.28

265

1-2

JJ-7025

70

40

25

72

37

28

2.81

17.30

352

3

JJ-8025

80

50

25

85

44

30

2.81

20.40

416

3

JJ-10025

100

50

25

105

45

44

4.69

23.56

805

8

PTC-10020

100

60

20

105

56

23

2.88

25.10

540

3-4

JJ-10530

105

60

30

110

57

35

5.00

25.90

957

8-10

JJ-10540

105

60

40

110

57

34

6.30

26.06

1267

10-15

JJ-11020

110

60

20

116

55

25

3.50

26.69

725

5-7

JJ-11025

110

60

25

115

54

30

4.37

26.69

907

6-9

JJ-11030

110

60

30

115

55

35

5.25

26.69

1081

8-10

JJ-12030

120

60

30

125

57

35

6.48

28.20

1384

12-15

JJ-12020

120

70

20

125

67

25

3.60

29.80

811

10

JJ-12025

120

70

25

125

67

30

4.60

29.80

1014

8-10

JJ-12030

120

70

30

125

67

35

5.40

29.80

1217

10-12

JJ-12040

120

70

40

125

67

47

7.50

29.80

1538

12-18

JJ-13040

130

80

40

136

76

45

7.20

30.30

1793

15-20

JJ-13050

130

80

50

136

76

55

9.00

32.90

2242

20-25

JJ-13050

130

90

50

136

85

56

7.50

34.50

1879

20-25

JJ-8020

80

50

20

85

44

25

2.10

20.56

332

2-3

JJ-13060

130

80

60

136

76

66

11.25

32.99

2700

22-28

Note: The iron core is circular, rectangular, runway type, etc., which can be made according to customer specifications.

Protective box material for PBT, PA66, DMC, cast aluminum, stainless steel, resin coating.




  • :

    Product Detail

    Product Tags

    Nanocrystalline Instrument Current Transformer Core are widly used for Low Voltage, Medium Voltage, High Voltage Current Transformer. Core’s shape including: Toroidal Shape, Rectangular Shape, Oval Shape.
