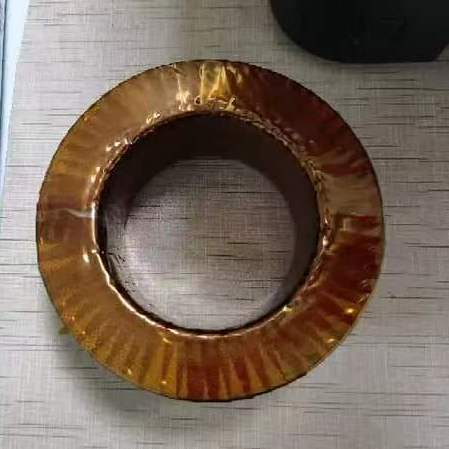

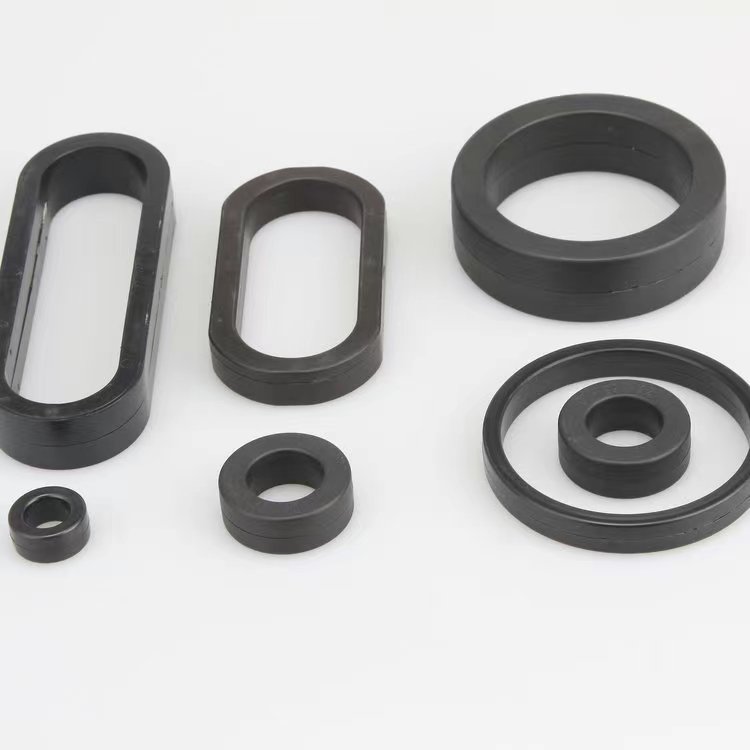

Nanocrystalline Transformer Core Used In Inverter Welding Machine Power Supply

Short Description:

Unique patent hold, DC current immunity composite cores with amorphous And nanocrystalline cores together. Strong immunity for DC current



Product Detail

Product Tags

Features

● Unique patent hold, DC current immunity composite cores with amorphous
● And nanocrystalline cores together.
● Strong immunity for DC current
● Applicable Current range 1.5-200A
● Good temperature stability
● With competitive price and good quality

Performance

● High Bs - Reducing volume and weight of the cores
● High permeability and low Coercive force --Higher efficiency and less excited power of transformer
● Low Br (Br≤0.2T) - Higher magnetic flux density and output power
● Low core loss - Lower temperature rising,higher efficiency of the transformer
● Keep stable working at -45℃ ~ 130 ℃ for long time.

Applications

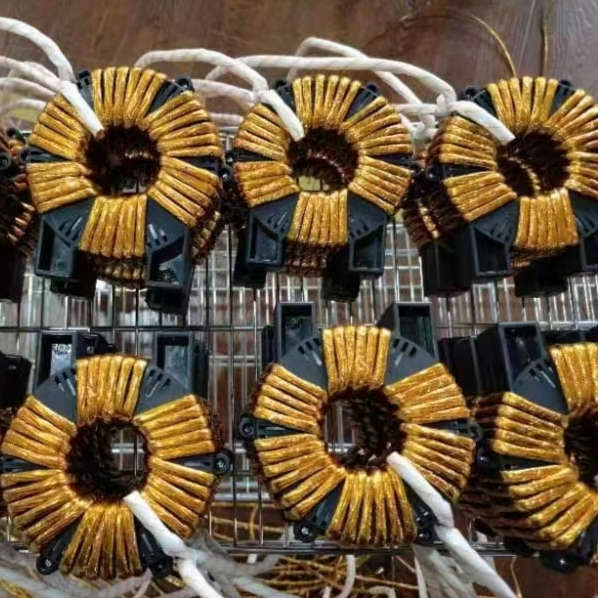

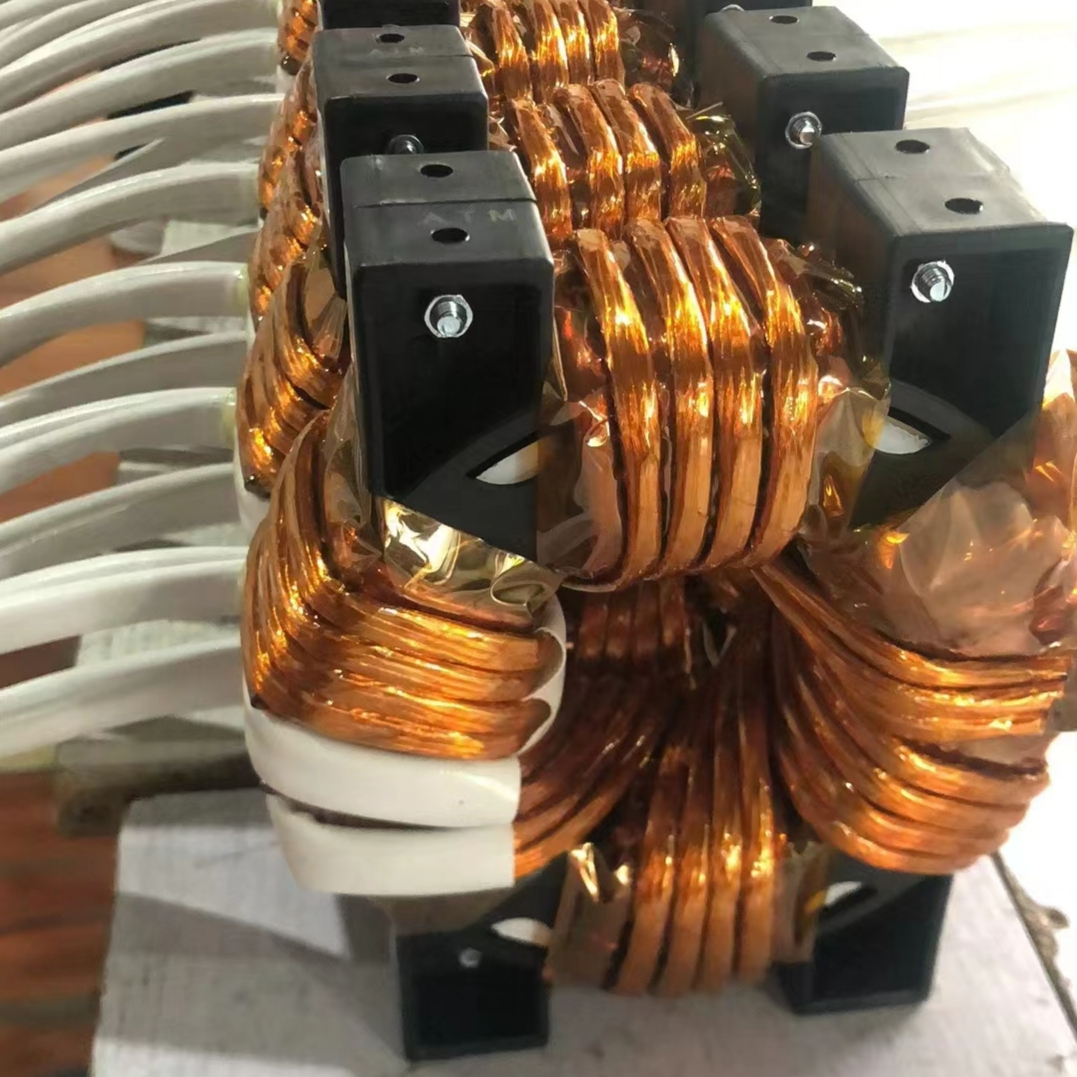

● Inverter Welding machine power supply
● X-ray, laser, communication power supply
● UPS and high frequency induction heating power supply
● Frequency control of motor speed power supply
● Charging power supply
● UPS

Parameters

ItemPerformance
Material CompositionFeCuNbSiB
Thicknessum28~35
Saturation induction Bs (T)1.25
Curie temperature(oC)570oC
Hardness Hv880
Crystalline temperature Tc(oC) 500oC
Saturation magnetostriction 2×10-6
Initial permeability μi≥80000
Maximum permeability um≥500000
Densityg/cm³  7.2
electrical resistivity(μΩ.cm) 130
Lamination factor ≥0.8
Operating Temperature Range-50~120

Specification

Code NoCore size(mm)Case size(mm)AC(cm2)Le(cm)Weight(g)Suitable Power
ODIDHTODIDHTAcLmWkW
JJ-50205032205428241.3512.871251-1.5
JJ-64206440206637231.7216.302151-2
JJ-70207040207536252.0317.282651-2
JJ-70257040257237282.8117.303523
JJ-80258050258544302.8120.404163
JJ-10025100502510545444.6923.568058
PTC-10020100602010556232.8825.105403-4
JJ-10530105603011057355.0025.909578-10
JJ-10540105604011057346.3026.06126710-15
JJ-11020110602011655253.5026.697255-7
JJ-11025110602511554304.3726.699076-9
JJ-11030110603011555355.2526.6910818-10
JJ-12030120603012557356.4828.20138412-15
JJ-12020120702012567253.6029.8081110
JJ-12025120702512567304.6029.8010148-10
JJ-12030120703012567355.4029.80121710-12
JJ-12040120704012567477.5029.80153812-18
JJ-13040130804013676457.2030.30179315-20
JJ-13050130805013676559.0032.90224220-25
JJ-13050130905013685567.5034.50187920-25
JJ-80208050208544252.1020.563322-3
JJ-130601308060136766611.2532.99270022-28
